3D Scene Understanding with Concept Graphs

Most robot perception systems either produce flat 2D segmentation masks or rigid 3D maps with fixed object vocabularies. This project builds a complete pipeline that goes further: an agent navigates a photorealistic indoor environment, constructs a dense 3D volumetric map, and organises every detected object into a queryable scene graph — all without any fixed class list.

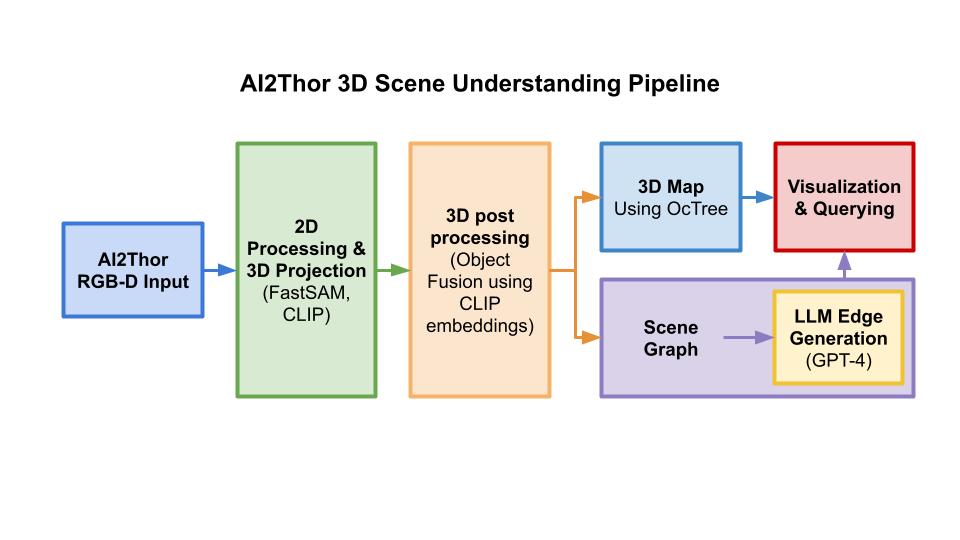

The system runs end-to-end inside the AI2-Thor simulator, collecting RGB-D observations from a set of sampled viewpoints:

• Segmentation — FastSAM runs on each RGB frame to produce instance masks. Unlike class-driven detectors, FastSAM segments anything, giving the pipeline open-vocabulary coverage of every object in the scene.
• Embedding & classification — Each masked region is passed through a CLIP image encoder. The resulting embedding is matched against a user-supplied class list (with a minimum confidence threshold) so objects get soft, overrideable labels rather than hard predictions.
• 3D backprojection — Using the depth channel and the camera's known intrinsics and pose, every segmented pixel is lifted into world-frame 3D, producing per-detection point clouds.
• Multi-view fusion — An ObjectFuser associates detections across viewpoints by centroid distance, CLIP similarity, and 3D bounding-box IoU. Duplicate tracks are merged; short-lived noise tracks are pruned.
• OctoMap — Surviving tracks are inserted into a 3D octree, giving a compact, voxelised representation of the scene geometry with per-object colouring.
• LLM scene graph — GPT-4 is prompted with each object's label and centroid and asked to infer spatial and semantic relationships (e.g. "lamp is on table", "chair is next to desk"). These edges are added to a graph structure that supports interactive sub-graph queries ("where are the chairs?").

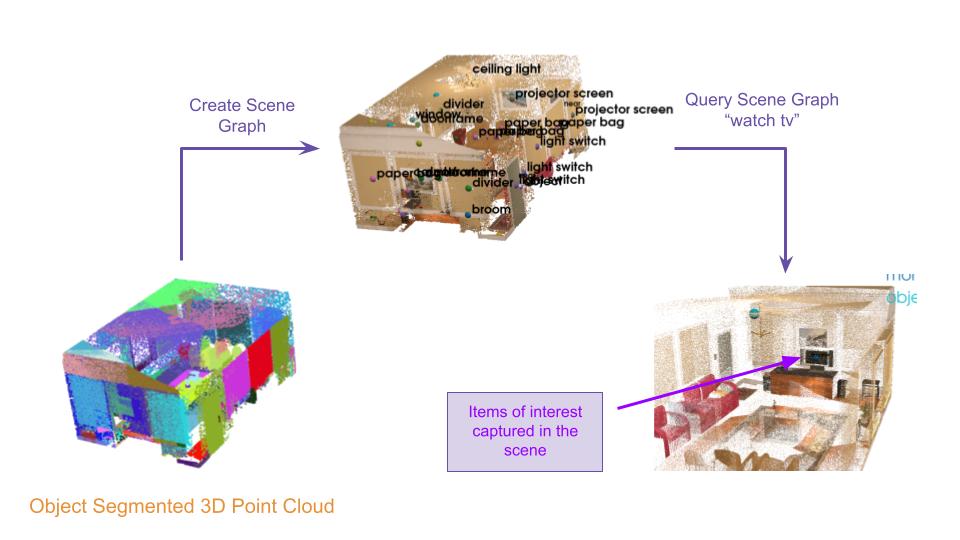

The result is a persistent, queryable 3D world model — an agent can ask natural-language questions about the scene and get back a sub-graph highlighting the relevant objects and their spatial context.
